YK#1 Speaker

Product Design / 2022 / 1 semester
Project Overview
Inspired by the megaphone’s iconic form—where shape clearly communicates the act of projecting sound—YL#1 Speaker explores how geometry can define function. The design features two angular horn structures: a longer form that directs sound and a shorter form that integrates a light source. Through structural studies, acoustic testing, and hands-on fabrication, the project investigates how form, material, and internal mechanics can merge sound and illumination into one cohesive system.
Tools
Audio Hardware Integration
Electronics Assembly
Fusion 360
Wood Working
Materials
MDF Wood
LED
Two subwoofer units
Inspiration
Megaphone
The form of megaphone has developed over centuries, and the megaphone's shape itself embodies the function of amplifying sound.

I sought to translate that history into a modern context.
Silhouette of a bird, possibly a woodpecker, perched diagonally on a branch in a black and white design.Geometric abstract art featuring layered black and white shapes, including a central black area surrounded by white and gray triangles and rectangles.Illustration of a person with git branching structure lines and icons symbolizing pull, push, and merge actions in version control.Illustration of a unicorn head with rainbow-colored mane and a pink spiral horn on a black circular background.
Shape Study

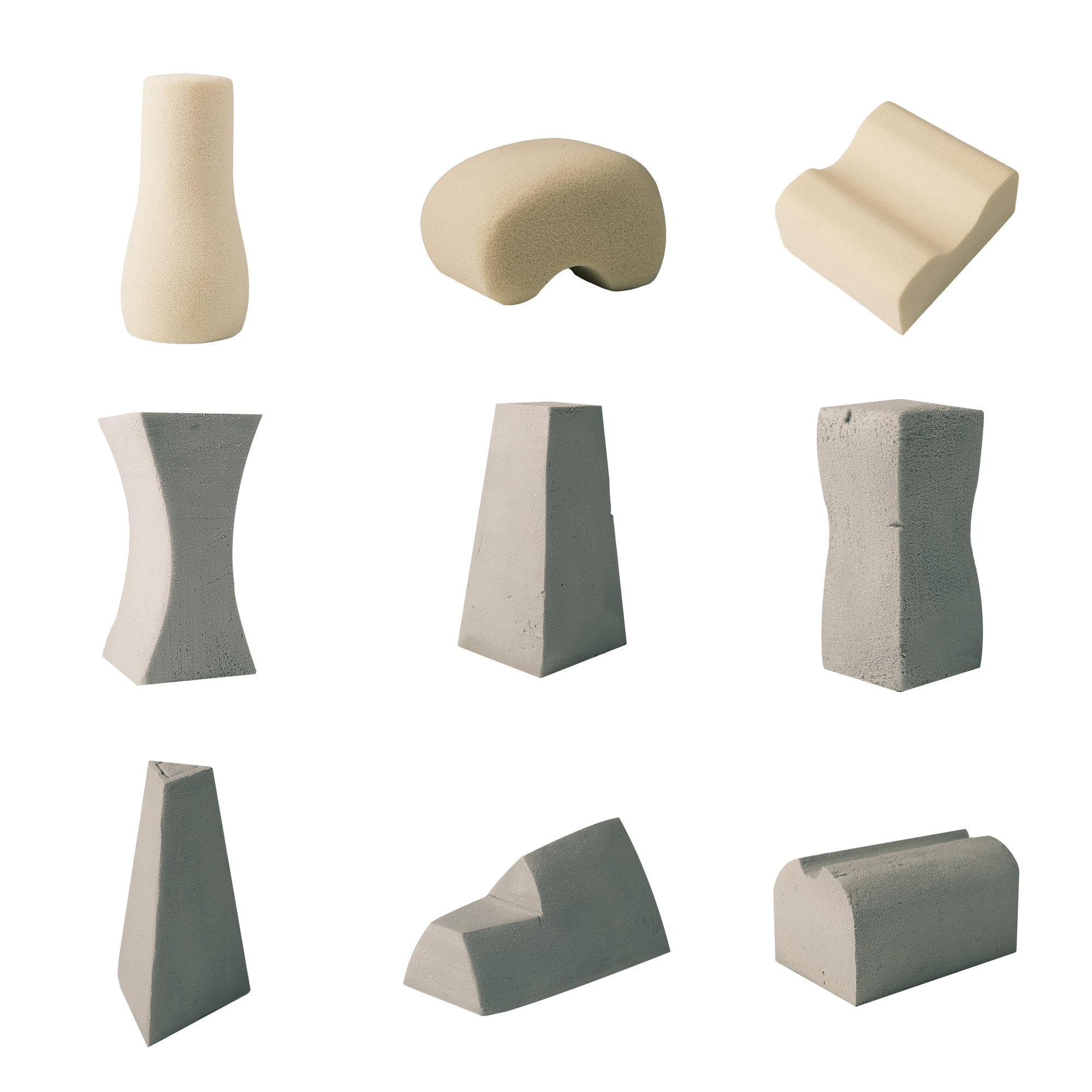

Nine differently shaped foam and concrete texture blocks arranged in three rows on a white background.Four beige cylindrical and round ceramic or stoneware objects, shown from different angles on a white background.
Simple Shapes
I began the ideation process by refining various forms inspired by the shapes that come to my mind when I think of a speaker.
Advanced Shape Study
Specific Shapes

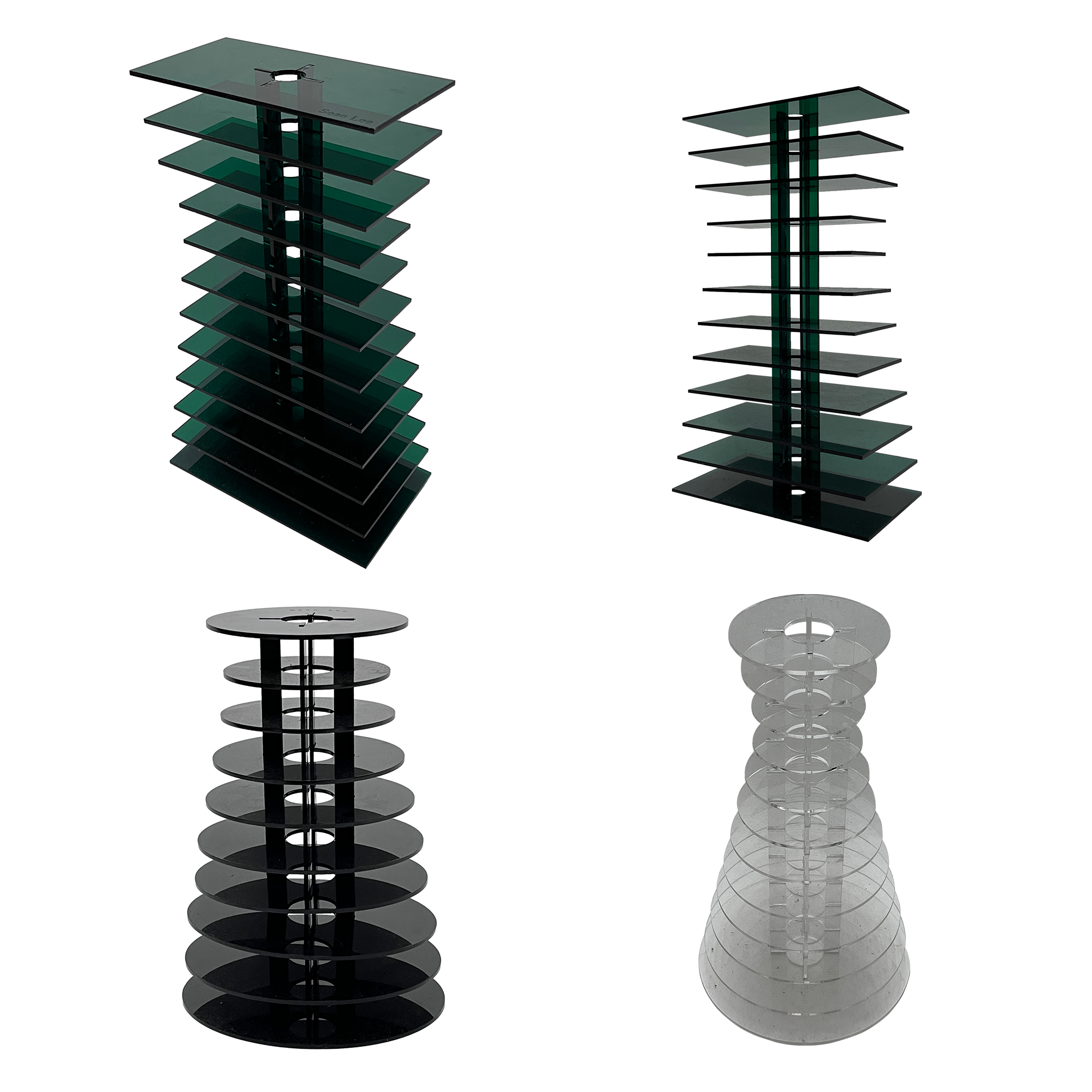

I explored advanced form development through laser-cut prototypes, refining multiple iterations to study proportion and structure.

From these experiments, I selected the form that best aligned with the project's purpose and crafted the final case in aluminum for a clean, durable finish.
Four transparent shelving units with black supports, featuring different shapes: two with stacked square shelves and two with stacked circular shelves.Three angled views of a metal hourglass-shaped hollow object with screws and worn edges.
Technical Sketch
Measurements for making
After modeling the design in a 3D program, I created detailed technical sketches to ensure precise material selection and accurate dimensions for production.

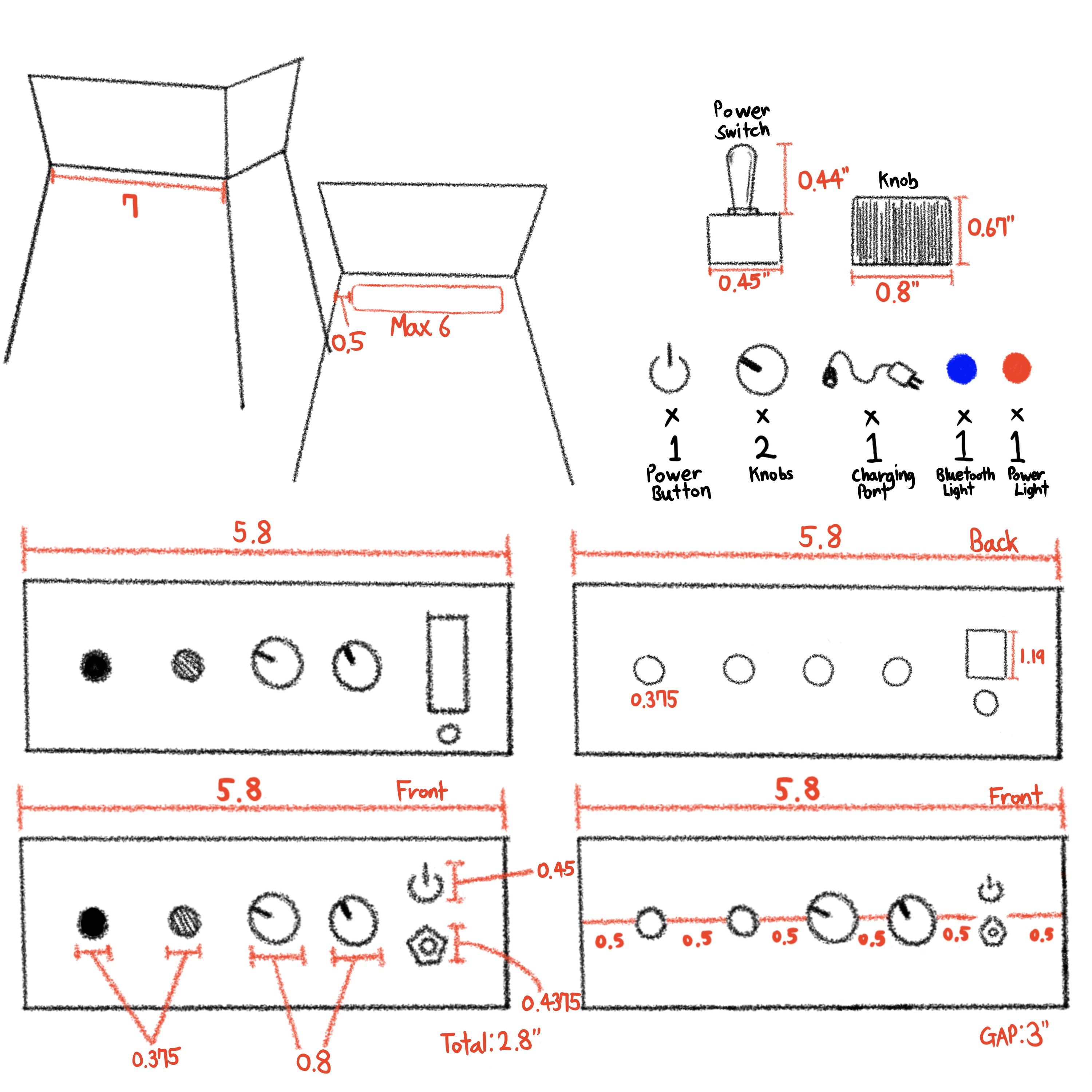

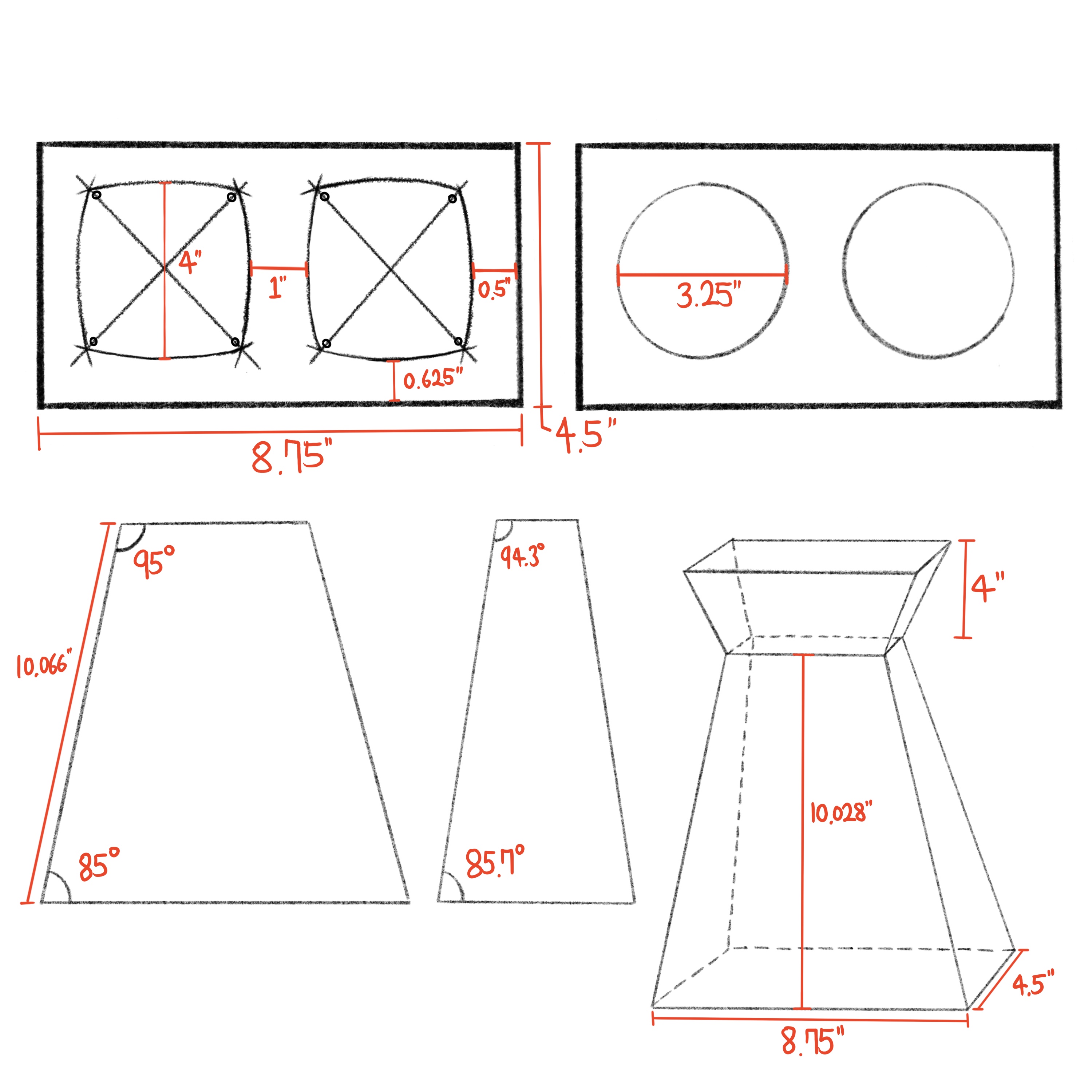

Technical sketch showing dimensions and layout of a device's front and back panels with power switch, knobs, charging port, Bluetooth light, and power light, including detailed measurements in inches.Technical sketch showing measurements and angles of a 3D trapezoidal-shaped object with circular cutouts and detailed dimensions in inches.
Model Making
Fun Part!

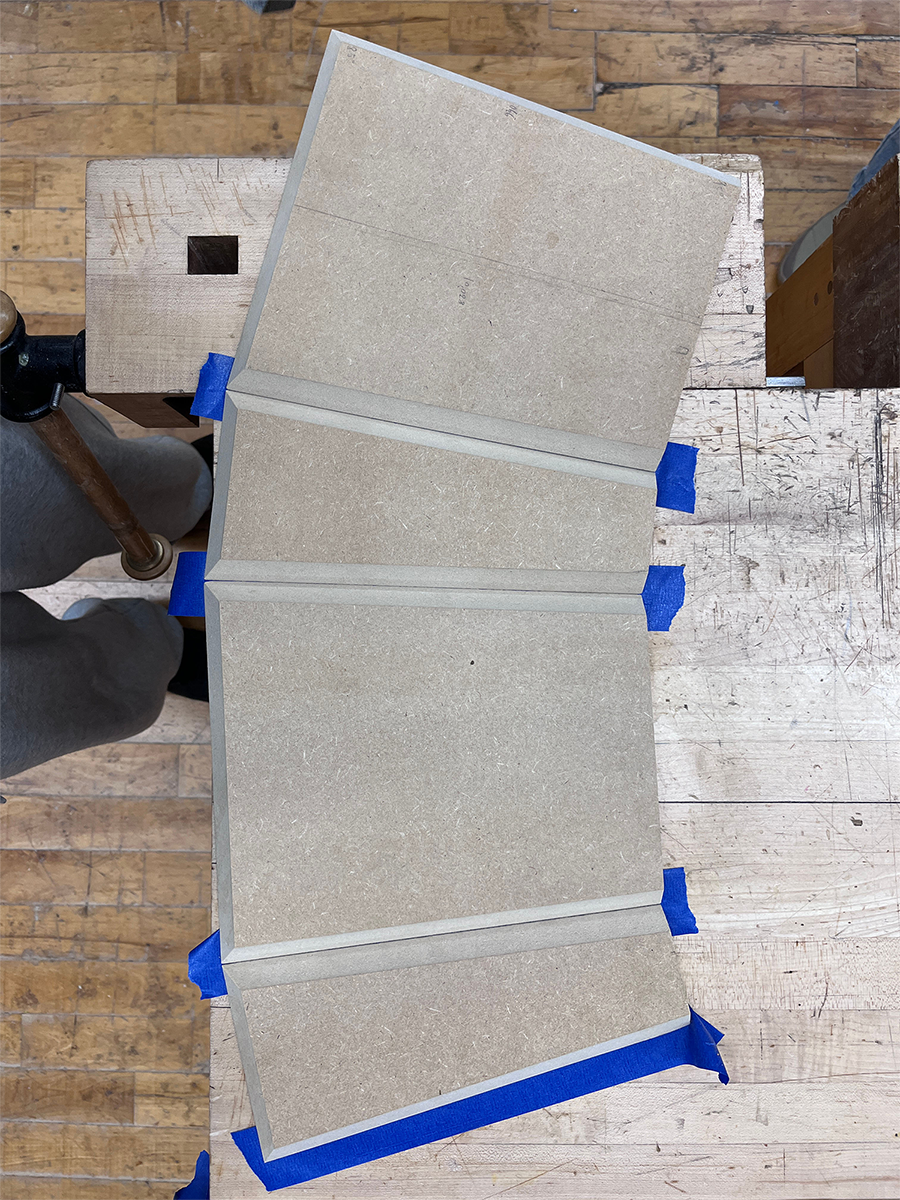

Wood Working...
Wiring...

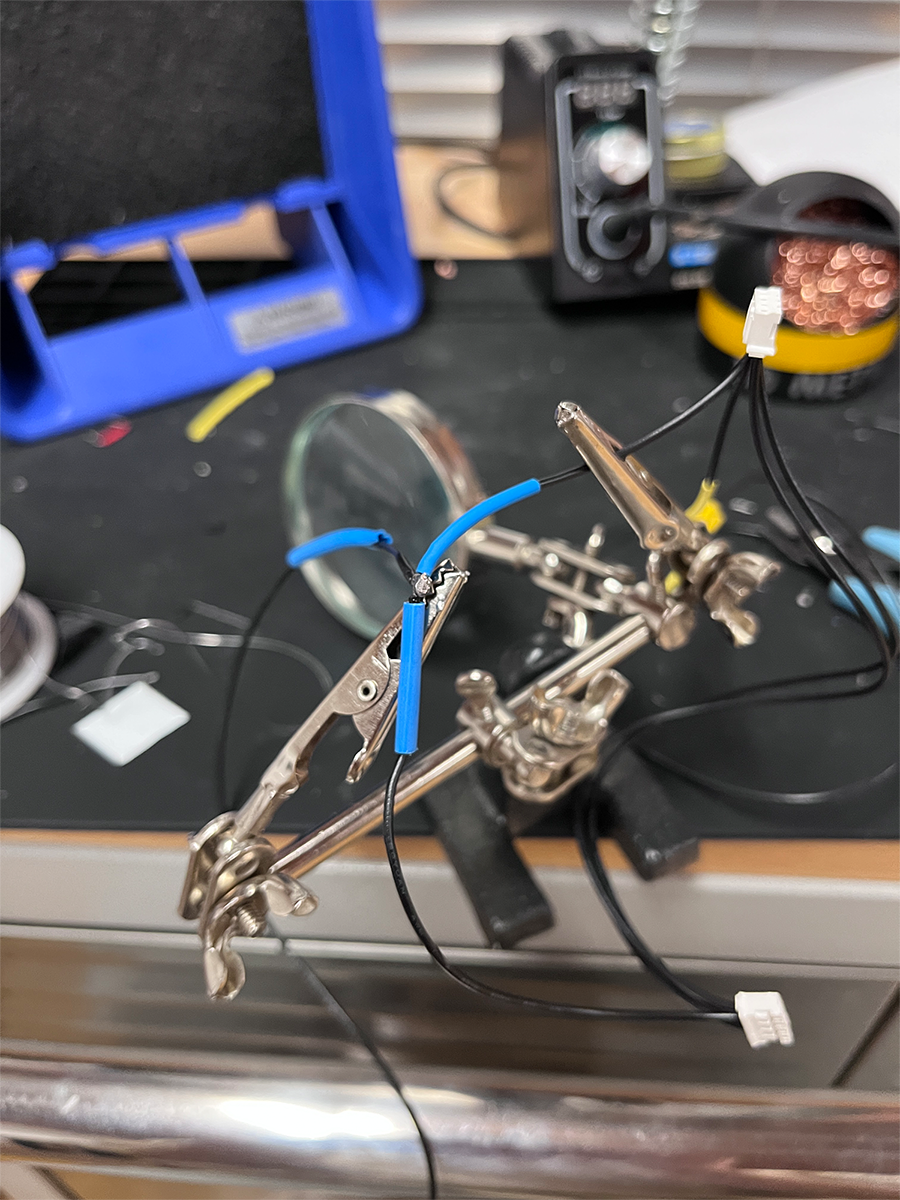

Soldering...

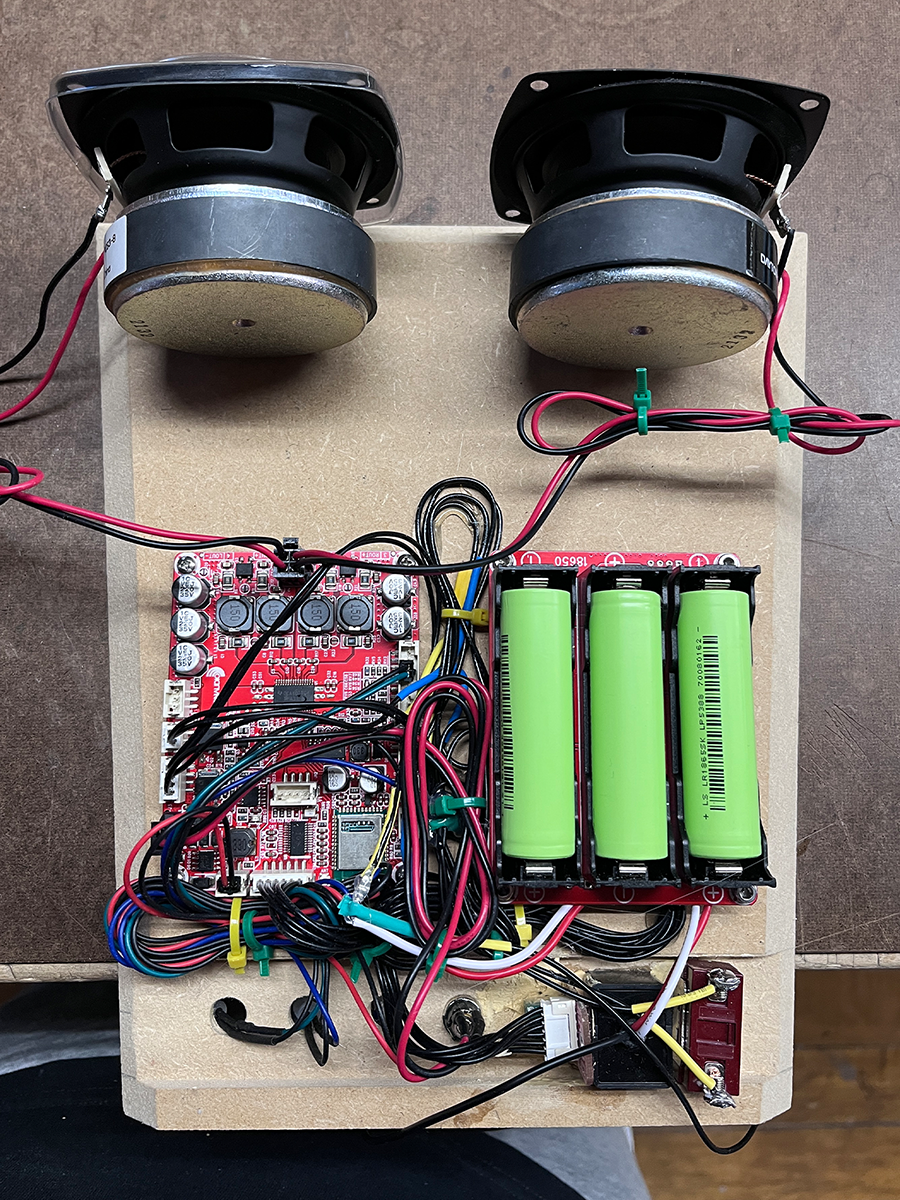

Table saw with red throat plate and circular blade partially visible, next to a piece of wood with a routed groove.Four rectangular wooden boards with beveled edges taped together with blue painter's tape on a wooden workbench.Helping hands tool holding black and blue wires with soldered connections on a workbench.Two speakers, a circuit board with capacitors, and three green cylindrical batteries connected with red, black, and other colored wires mounted on a wooden board.
Images
Speaker Shot

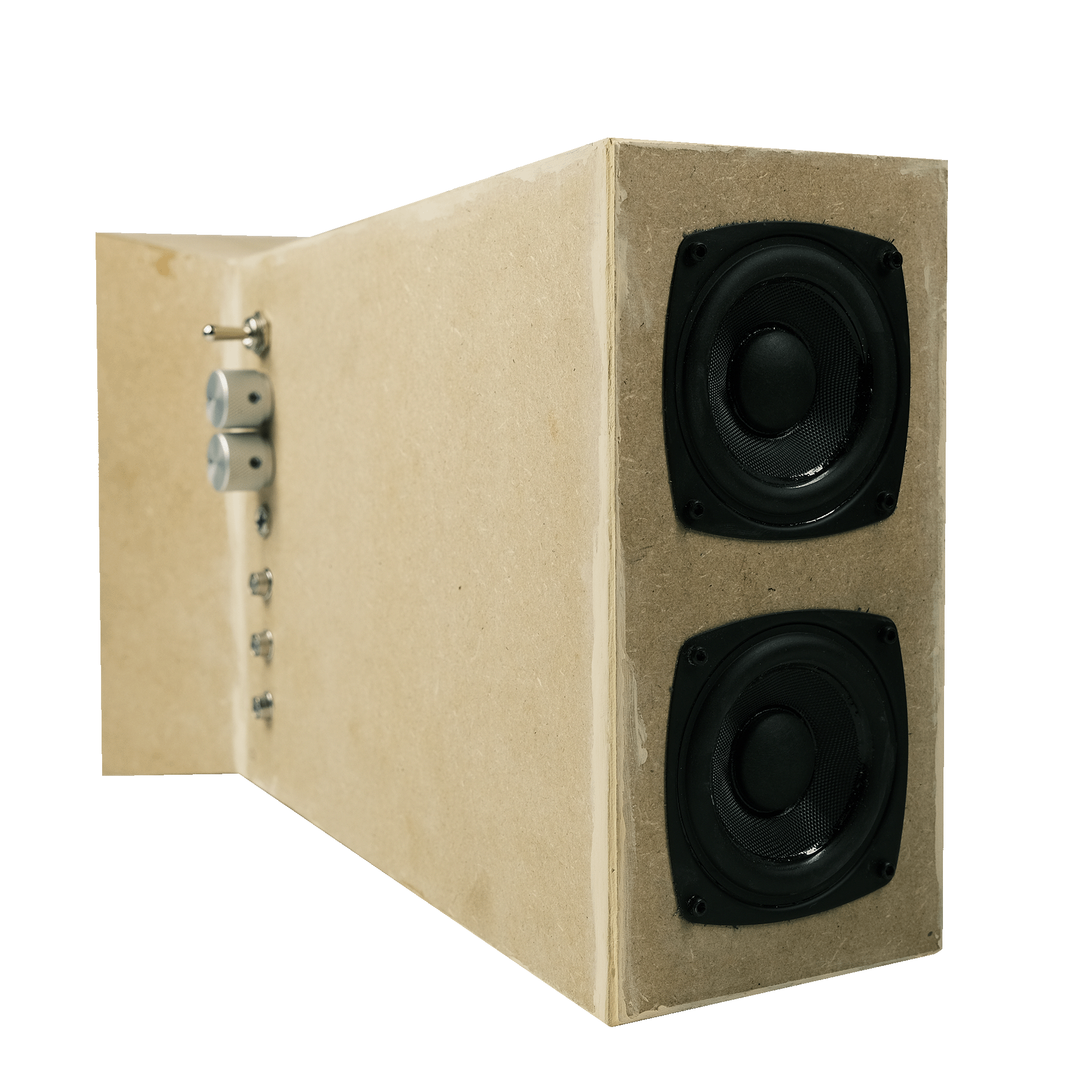

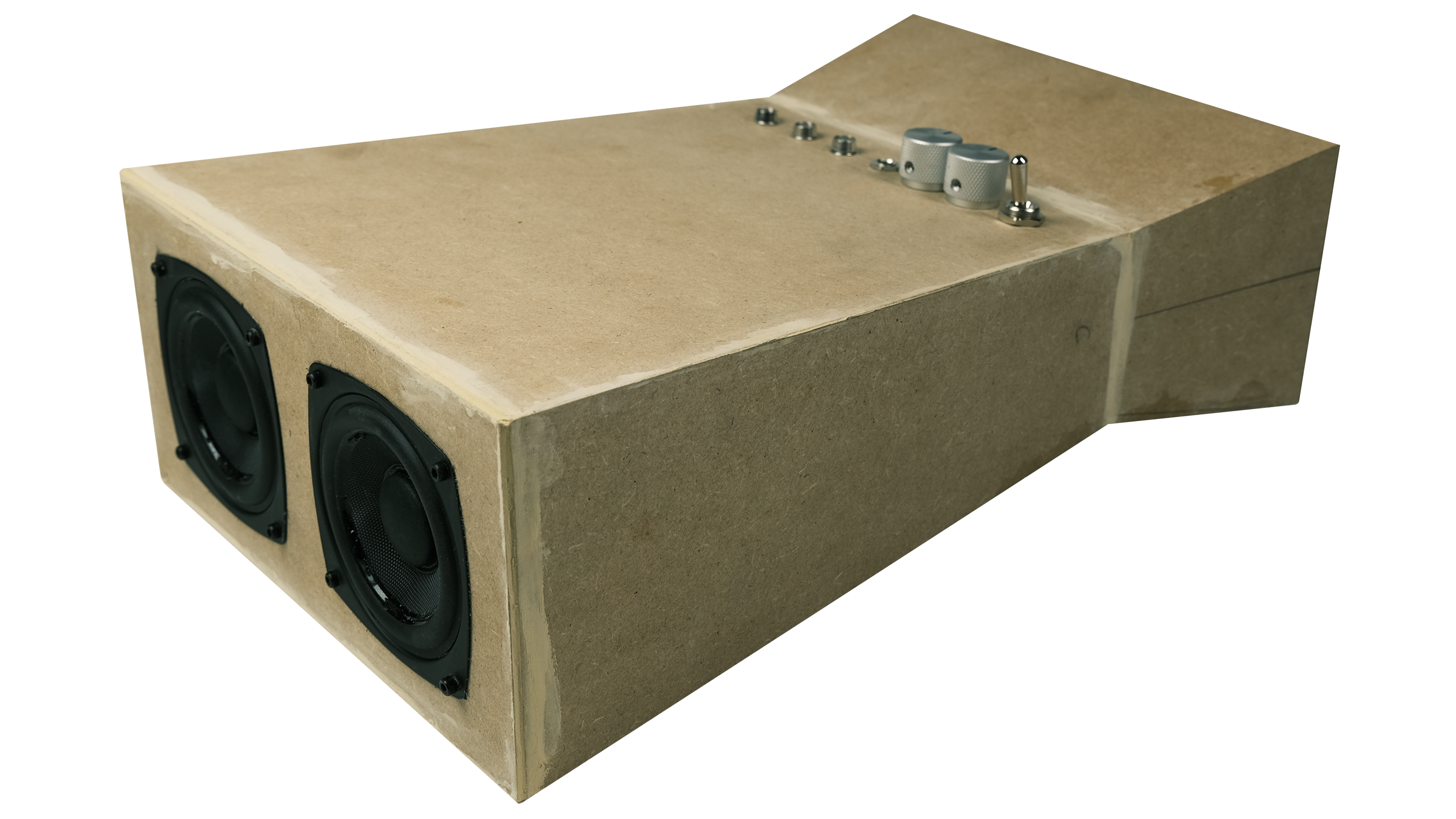

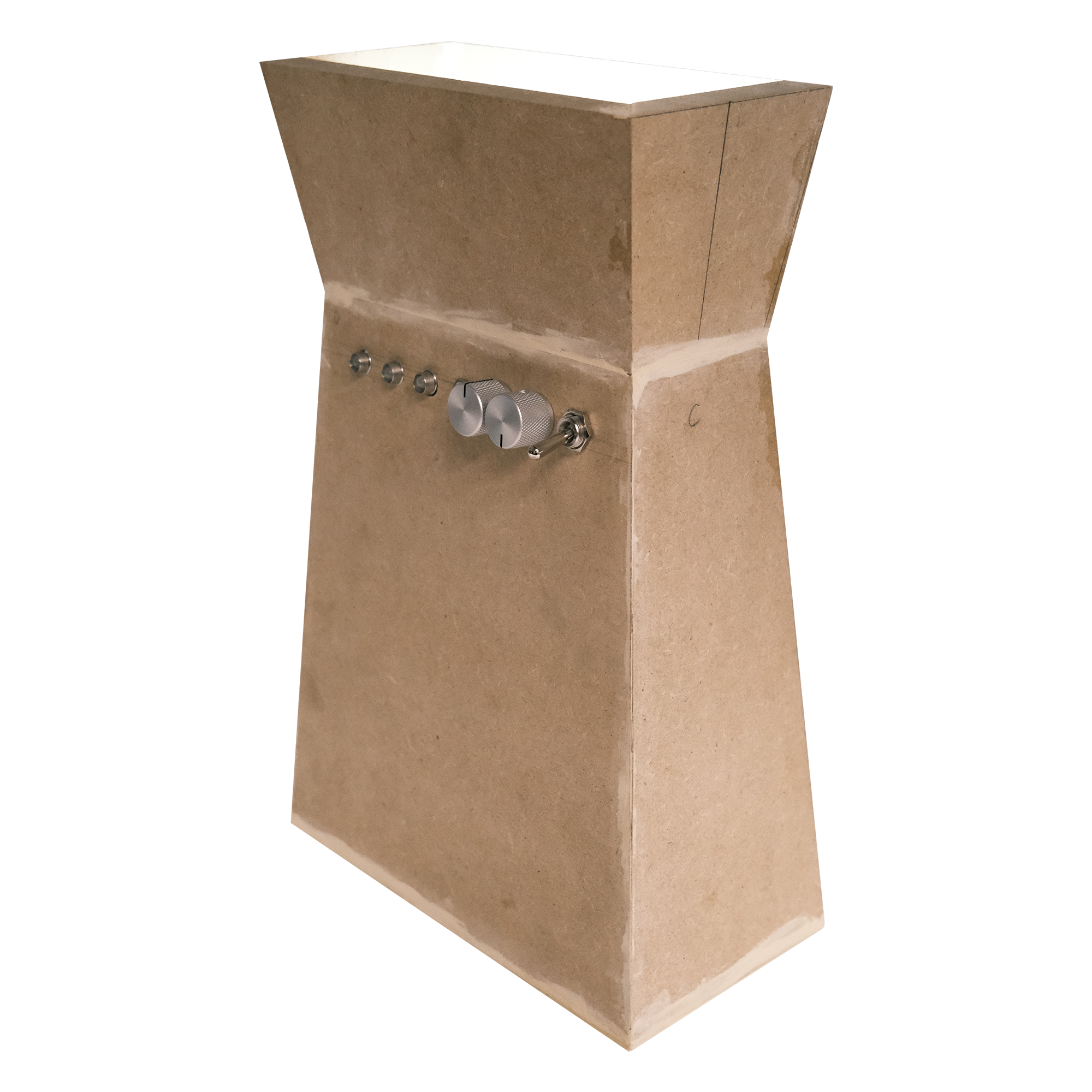

Rectangular wooden speaker box with two black speaker drivers on the front and two metal knobs with a toggle switch on the side.
Light softly diffuses from the back, while sound projects forward with clarity—two directions working in harmony within a single form.
